Copper Mould Tube

Pioneering Excellence in Copper Mould Tubes – Powered by Innovation, Precision, and Customer Trust in the Steel Industry

BSFC

The copper mould tube is a critical component in any continuous casting process. It not only shapes the molten steel but also ensures optimal initial solidification, providing the strength needed to contain the liquid steel during the casting process and preventing internal or surface defects. At [Your Company Name], we understand that every detail matters. That’s why our moulds are engineered with careful consideration of all operational variables and casting practices that can influence steel quality and productivity. With decades of expertise in the steel industry, we design copper mould tubes that meet the specific needs of each plant. Every design is developed using advanced computer-aided analysis and thermal simulation to study heat transfer and solidification patterns, combined with feedback from on-site operational trials. Our tailor-made approach ensures consistent performance, longer service life, and the highest quality end product – making us a trusted partner for steel producers worldwide.

BSFC
BSFC

Manufacturing Excellence at Beijing Sino Forge Company

At Beijing Sino Forge Company, our copper mould tubes and plates are produced in a fully integrated manufacturing facility, ensuring precision, consistency, and complete traceability from raw material to finished product.

Our plant combines copper melting and casting, extrusion, hot and cold rolling, drawing, machining, heat treatment, and advanced electrolytic coating under one roof. This end-to-end control allows us to meet diverse customer requirements with exceptional quality and reliable delivery timelines.

Tubular Mould Production

The manufacturing process for tubular moulds begins with the casting of premium-grade copper round bars. These are hot extruded or forged to refine the structure, followed by cold drawing to achieve precise dimensional tolerances, mechanical strength, and required taper specifications. Tapering is accomplished using custom-engineered steel tooling, developed in-house with advanced CAD/CAM technology.

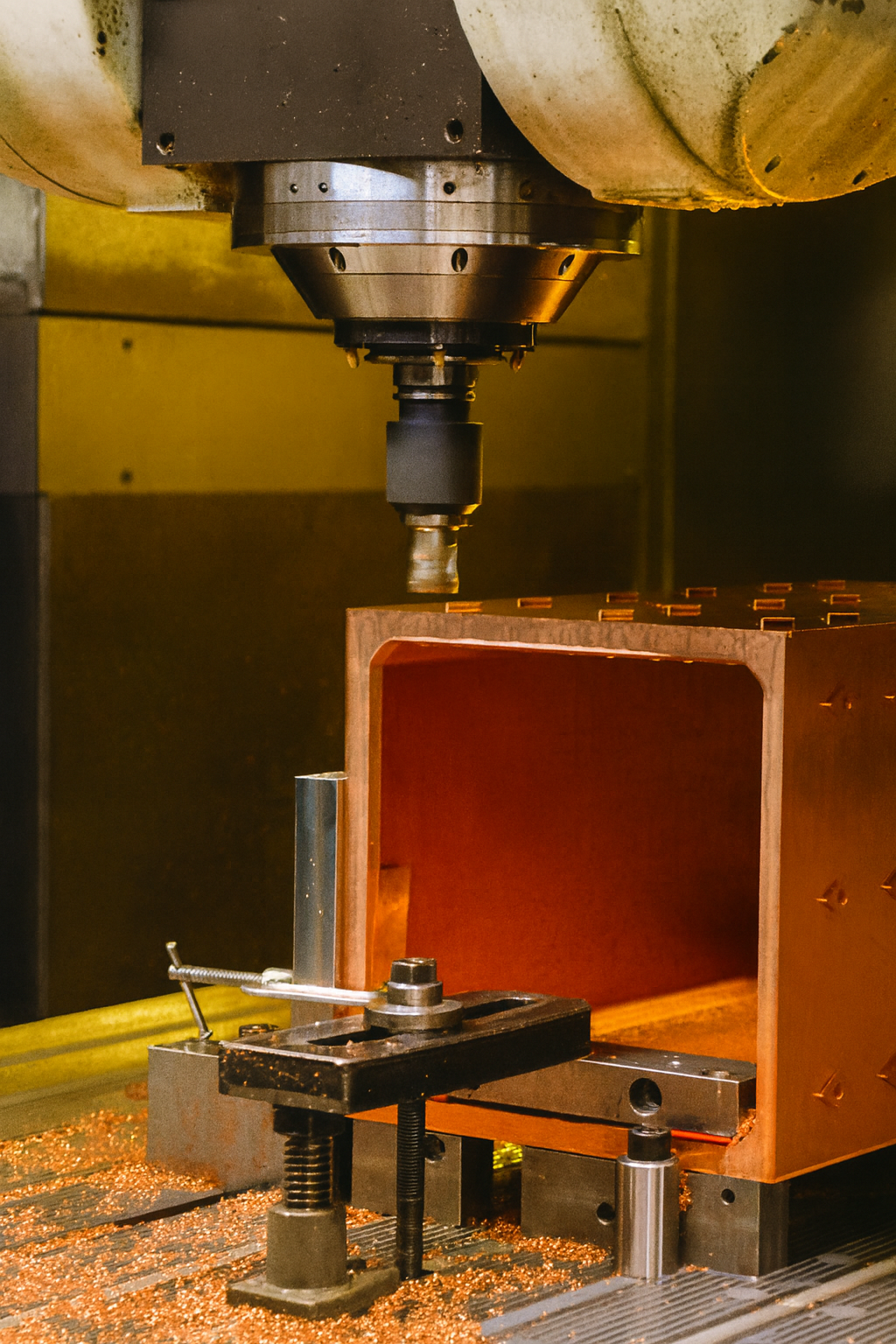

After achieving the desired geometry, the tubes undergo precision machining, internal chromium plating, and rigorous inspection to guarantee smooth operation and extended service life.

Plate Mould Production

For plate moulds, production starts with the casting of a solid copper slab, which is then hot rolled or forged, and further cold rolled to the exact thickness and strength required. Each plate undergoes full ultrasonic inspection to ensure flawless integrity before machining.

During the machining stage, slots for thermocouples and mounting configurations are created according to customer specifications. The final step involves applying our specialized mould plate coating for superior wear resistance and thermal performance.

Copper Mould Tube Material



Item Temp. Unit Material
CuDHP CuAg0.1 CuCrZr
Chemical Composition
P0.015-0.040 Ag0.08-0.12 Cr0.30-1.20
— P0.04-0.012 Zr0.03-0.30
Physical Properties
Electrical conductivity 20 %IACS 83 95 80
Thermal conductivity 20 W/(m.k) 340 372 330
Coefficient of thermal expansion 20-300 10’-6/K 17.1 17.1 17.2
Recrystallisation temperature — ℃ 345 360 690
Modulus of elasticity 20 10’3MPa 120 123 126
Melting point — ℃ 1083 1083 1078
Specific gravity — g/cm3 8.9 8.9 8.9
Mechanical Properties
Ultimate tensile strength 20 Mpa 240-310 240-310 375-445
Ultimate tensile strength 100 Mpa 190-270 230-270 365-425
Ultimate tensile strength 200 Mpa 140-190 205-240 365-410
Ultimate tensile strength 300 Mpa — 175-210 335-375
Ultimate tensile strength 400 Mpa — 145-160 315-350
0.2 Yield point strength(Rp0.2) 20 Mpa 190-250 200-225 280-355
0.2 Yield point strength(Rp0.2) 100 Mpa 185-260 195-240 270-345
0.2 Yield point strength(Rp0.2) 200 Mpa — 180-225 260-330
0.2 Yield point strength(Rp0.2) 300 Mpa — 165-215 250-320
0.2 Yield point strength(Rp0.2) 400 Mpa — 130-145 240-290
Elongation（A5） 20 % 25_10 16_10 20-13
Hardness 20 HB 80-95 110-125 115-130

Beijing Sino Forge Copper Mould Tubes

Precision for Continuous Casting in Steelmaking

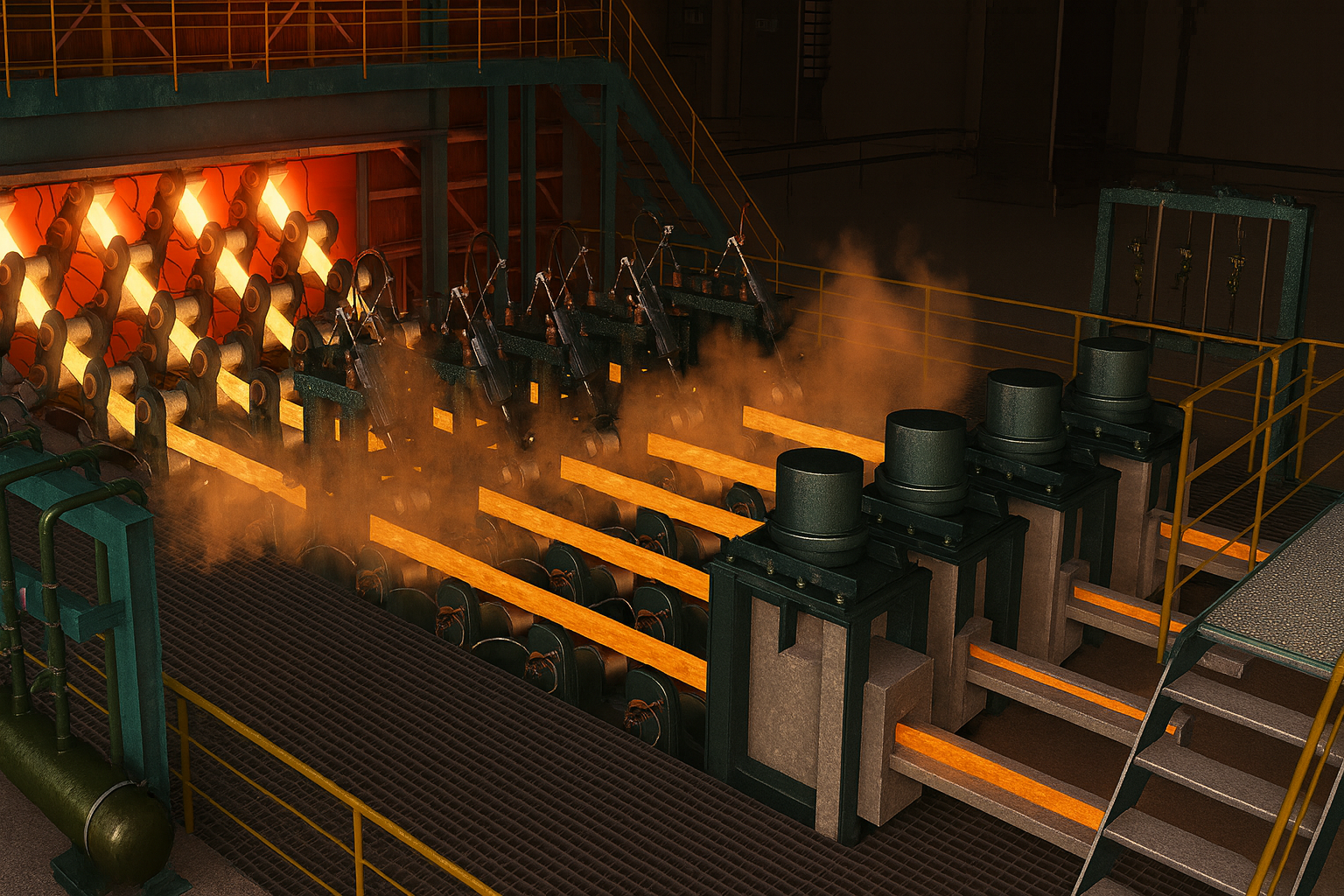

Beijing Sino Forge Company manufactures and supplies high-quality copper mould tubes for all major continuous casting applications, including:

Billet Casters

Bloom Casters

Beam Blank Casters

Slab / Thin Slab Casters

Our mould tubes are designed to deliver exceptional durability, heat resistance, and precision, ensuring optimal solidification performance and minimizing casting defects. Every mould meets ISO9001 quality standards, offering:

  • High dimensional accuracy and perfect taper profiles

  • Enhanced surface hardness

  • Advanced Cr/Ni/NiCo/Ceramic coatings for maximum wear and heat resistance

We operate with fully integrated facilities for casting, machining, galvanizing, plating, and hardness testing. Our precision chromium plating process ensures consistent heat transfer and extended mould service life.

Trusted by leading steel groups in China, we manufacture tens of thousands of copper mould tubes annually — a testament to our product reliability and customer satisfaction.

BSFC

Key Features

  • 100% high-quality Chile-origin Copper

  • Available in alloys: CuDHP, CuAg0.1, CuCrZr, CuNiBe, CuCoNiBe

  • Coatings: Cr, Ni, NiCo, Ceramic — with various cross-sectional shapes

  • Over 20 years of manufacturing expertise in compliance with EN, DIN, ANSI, AS standards

  • Annual production capacity: 80,000+ pieces

  • Rapid delivery — as fast as 25 days

  • Advanced machining, drilling, and precision measuring facilities for exact taper profiles

  • Strict quality control with full traceability from raw material to finished product

  • Custom taper configurations including single, double, triple, quadruple, parabolic, and continuous

  • Proven performance in major steel plants worldwide, ensuring reliability and extended service life

Product Range & Specifications

BSFC

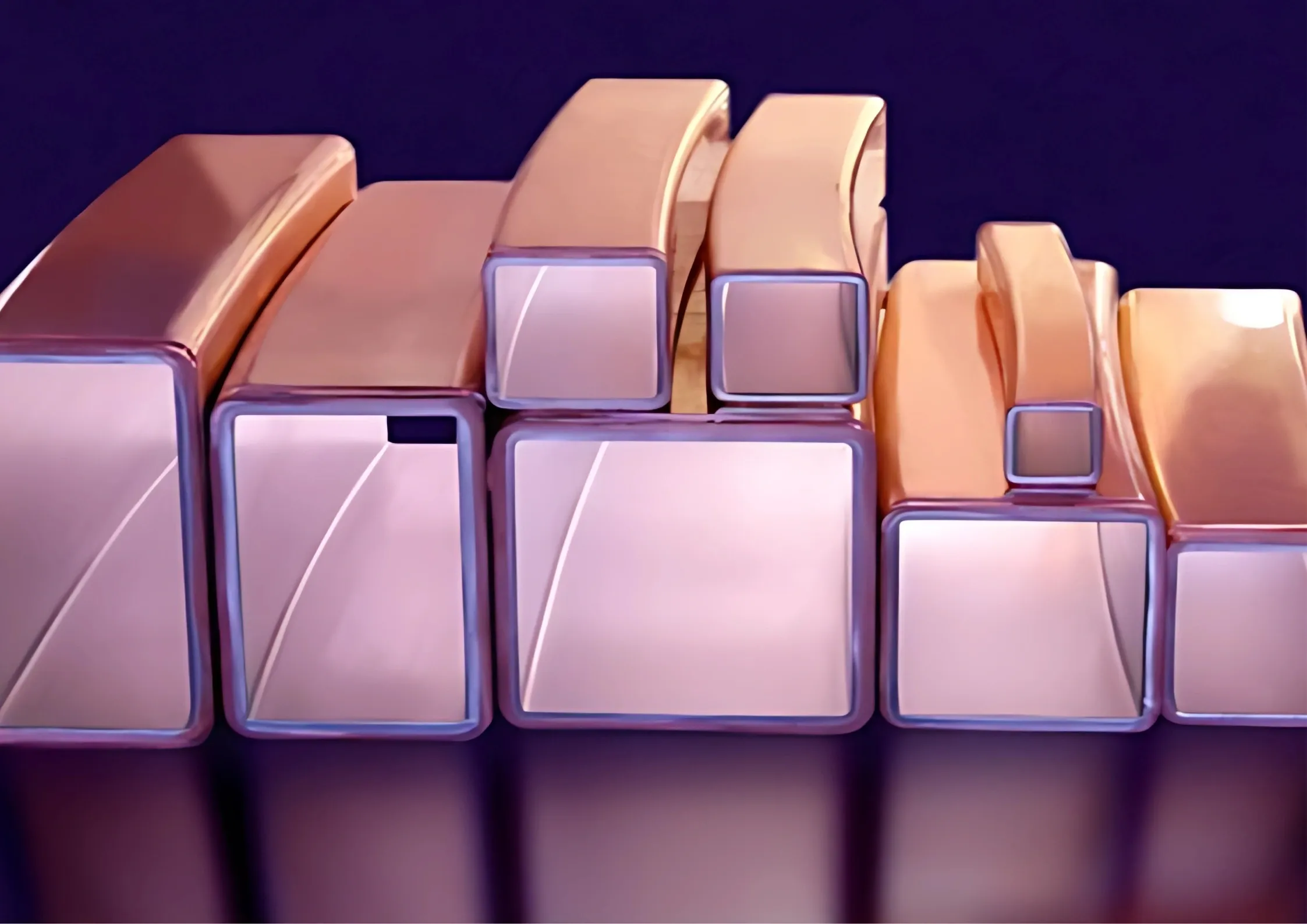

Square & Rectangle Copper Tubes

  • Square: 50×50 to 650×650 mm

  • Rectangle: (100–500)×650 mm

  • Length: 3000–17000 mm (straight or curved)

  • Thickness: 6–50 mm

  • Camber Radius: 602–1100 mm

  • Tapers: Single, Double, Triple, Quadruplicate, Parabolic, or Continuous High-Efficiency Taper

  • With or without slots

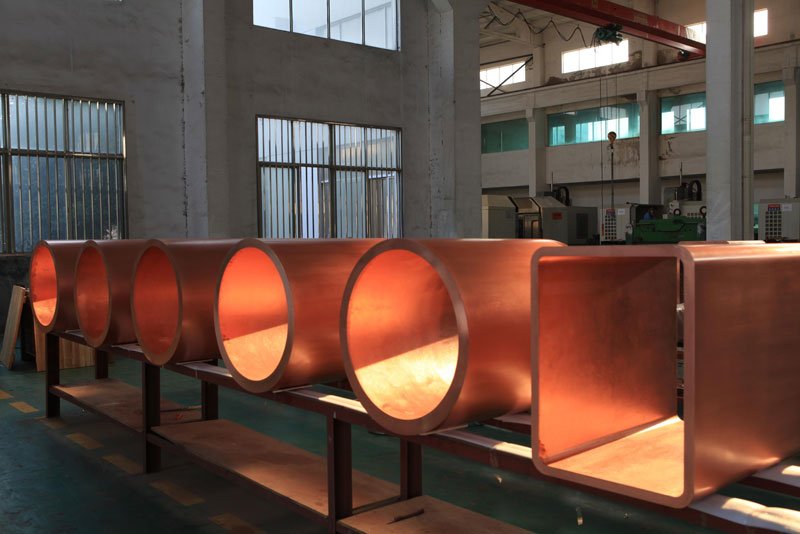

Round Copper Tubes

  • Diameter: Φ110–Φ1500 mm

  • Length: 5000–17000 mm

  • Thickness: 10–50 mm

  • Camber Radius: 602–900 mm

  • Taper types as above

Non-Standard & Beam Blank Mould Tubes

  • Beam Blank Dimensions: 535–150×120–70 mm

  • Length: 6000–14000 mm

  • Thickness: 12–50 mm

  • Camber Radius: 700–1016 mm

  • Taper types as above

Export Volume & Reach

  • Annual Export Volume: e.g. Over 80,000+ copper mould tubes manufactured annually, with more than 60% exported.

  • Global Coverage: e.g. Shipments to over 25 countries across 4 continents.

  • Top Markets: North America, EU (Germany, Italy, Spain), Middle East (UAE, Saudi Arabia, Qatar), and Asia (India, Vietnam, Thailand).

On-Time Delivery Performance

  • Delivery Compliance: e.g. 97% on-time shipment rate over the last 3 years.

  • Production Lead Time: e.g. Standard orders shipped within 25–30 days; urgent orders within 15 days.

Quality & Standards

  • ISO 9001 certified manufacturing.

  • 100% inspection before shipment.

  • All copper mould tubes meet EN, DIN, ANSI, AS standards.
