Graphite Electrode

In the steelmaking process, iron scrap gets melted in an electric arc furnace and recycled. Graphite electrodes, a kind of conductor, are an essential component in this kind of furnace. They can melt scrap at a temperature of about 1600℃.

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

BSFC

Essential Conductor for Modern Steelmaking
In high-efficiency electric arc furnaces (EAF) and ladle furnaces (LF), graphite electrodes are the critical conductors that enable melting and refining of steel scrap at temperatures exceeding 1600°C. With exceptional thermal conductivity, low electrical resistance, and superior heat & impact resistance, they ensure stable furnace operation under the most demanding production conditions.

BSFC

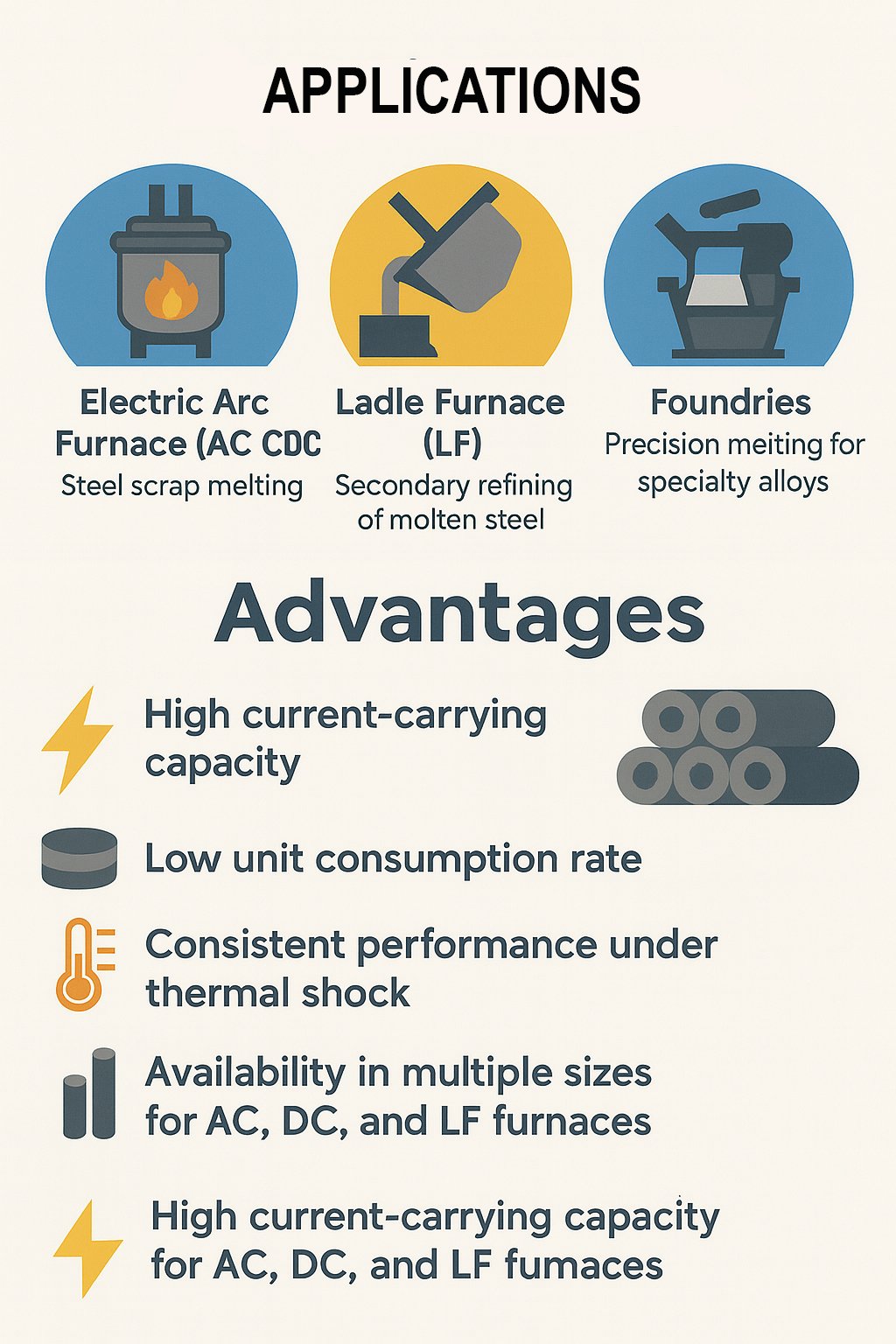

Applications

  • Electric Arc Furnace (AC & DC) – Used for melting recycled steel scrap at temperatures of around 1600°C.

  • Ladle Furnace (LF) – For secondary refining of molten steel, allowing alloy adjustment and removal of inclusions.

  • Foundries – Precision melting of specialty alloys and casting-grade steel.

  • Special Alloy Production – Ideal for producing high-performance alloys containing nickel, chromium, molybdenum, and other elements.

  • Metallurgical R&D Facilities – Utilized in research environments for highly controlled melting processes.

Advantages

  • High Current-Carrying Capacity – Capable of safely handling large electric currents in both AC and DC furnaces.

  • Low Unit Consumption Rate – Lower electrode consumption per ton of steel, reducing operational costs.

  • Superior Thermal Shock Resistance – Withstands rapid temperature changes with minimal risk of cracking or breakage.

  • Optimized Electrical Conductivity – Low electrical resistance minimizes energy loss during operation.

  • Dimensional Stability – Maintains size and structural integrity even after prolonged use.

  • Multiple Size Availability – Available in diameters from 14” to 32” for AC, DC, and LF furnaces.

  • Extended Service Life – Manufactured with advanced materials and processes for longer operational life.

  • Consistent Arc Stability – Ensures uniform heat distribution with stable arc performance.

  • Low Ash Content (<0.2%) – Minimizes contamination of molten metal.

  • Global Standards Compliance – Produced in accordance with ISO, ASTM, and other international standards.

Product Range

Furnace Type Size Range (inches) Feature Grade Typical Application
DC Furnace 22″ – 32″ UHP High-capacity scrap melting
AC Furnace 16″ – 28″ UHP / HP Standard steelmaking operations
LF Furnace 14″ – 18″ RP / HP Molten steel refining

Typical Properties

Property RP (LF) HP (AC) UHP (AC/DC)
Bulk Density (g/cm³) 1.58–1.70 1.65–1.76 1.68–1.75
Specific Resistance (μΩ·m) 6.0–8.5 4.5–6.5 4.2–5.5
Bending Strength (MPa) 10–14 12–18 12–18
Thermal Expansion (×10⁻⁶/°C) 0.8–1.5 0.5–1.0 0.5–0.9
Ash Content (%) ≤0.2 ≤0.2 ≤0.2\

Size & Weight Reference

Dia. × Length (inch × mm) Pole Weight (kg)
14 × 60 (350 × 1500) 253
16 × 72 (400 × 1800) 395
18 × 110 (450 × 2700) 766
20 × 110 (500 × 2700) 927
24 × 110 (600 × 2700) 1340
28 × 110 (700 × 2700) 1830
32 × 110 (800 × 2700) 2450

Quality Assurance

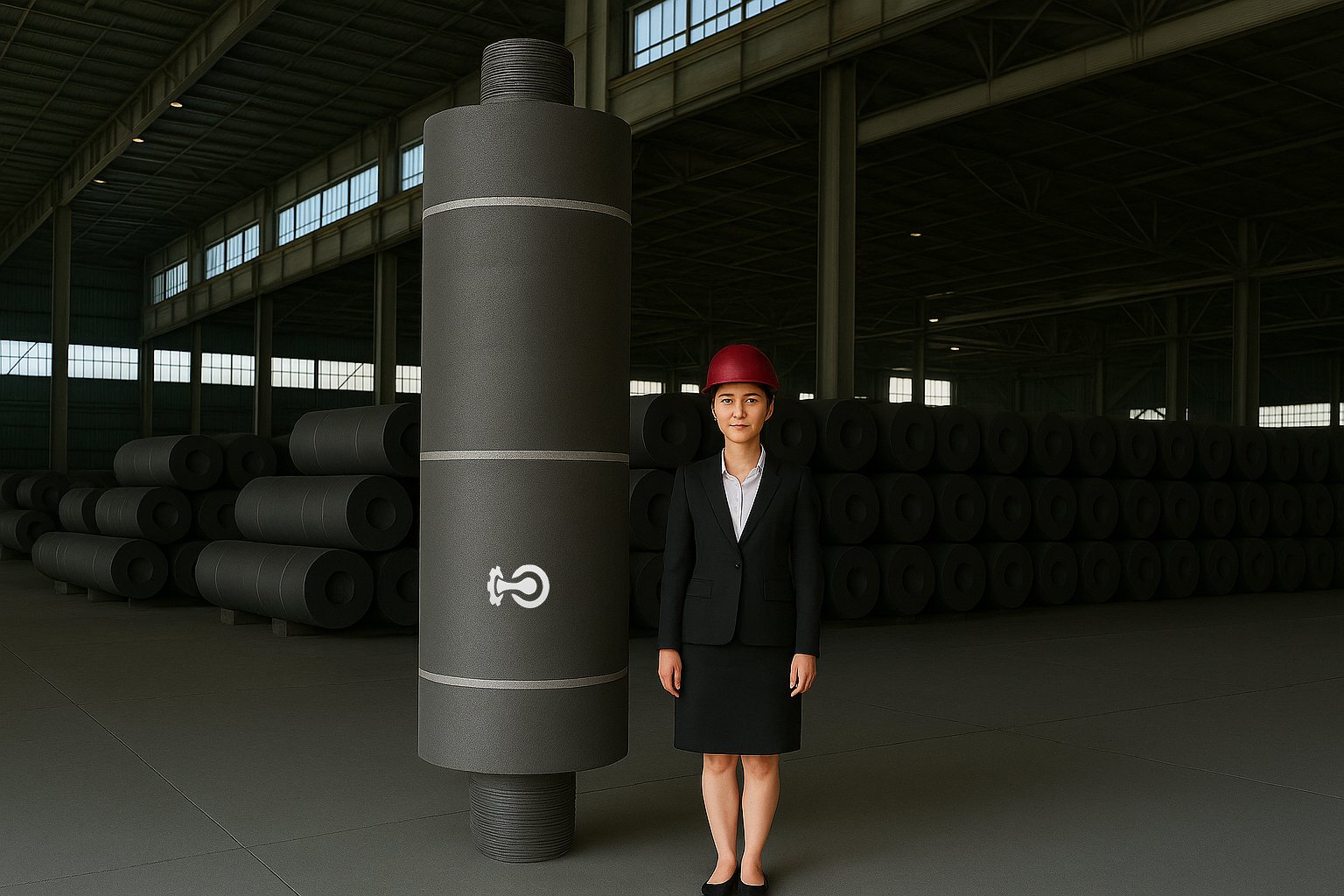

All electrodes are manufactured under strict quality control using advanced production technologies to ensure uniform properties and high performance in industrial applications. Each batch is tested for mechanical strength, electrical properties, and dimensional accuracy before delivery. infographic slide banner image with graphite electrode dark background image
